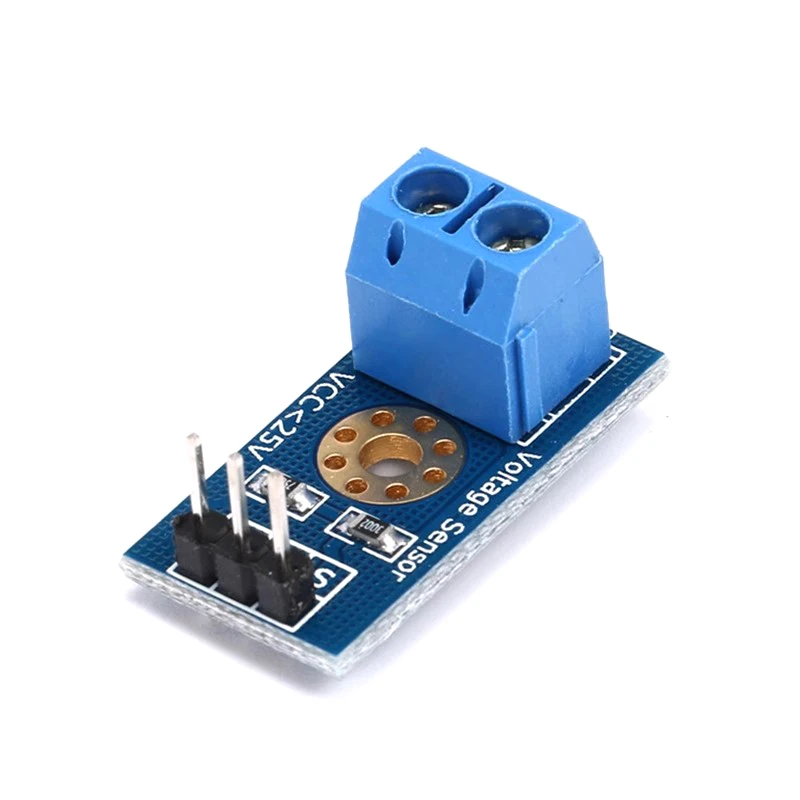

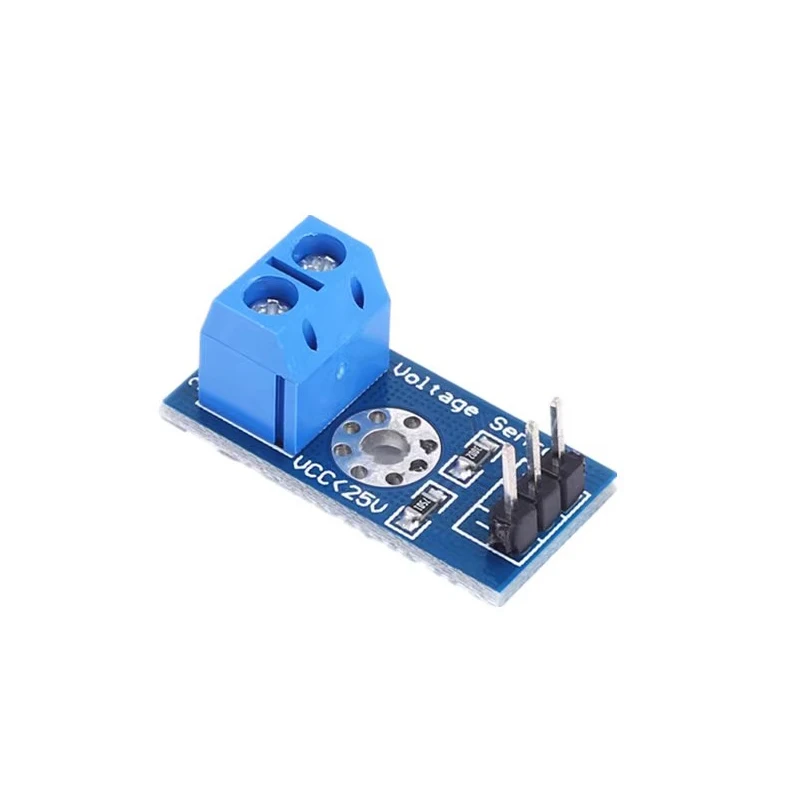

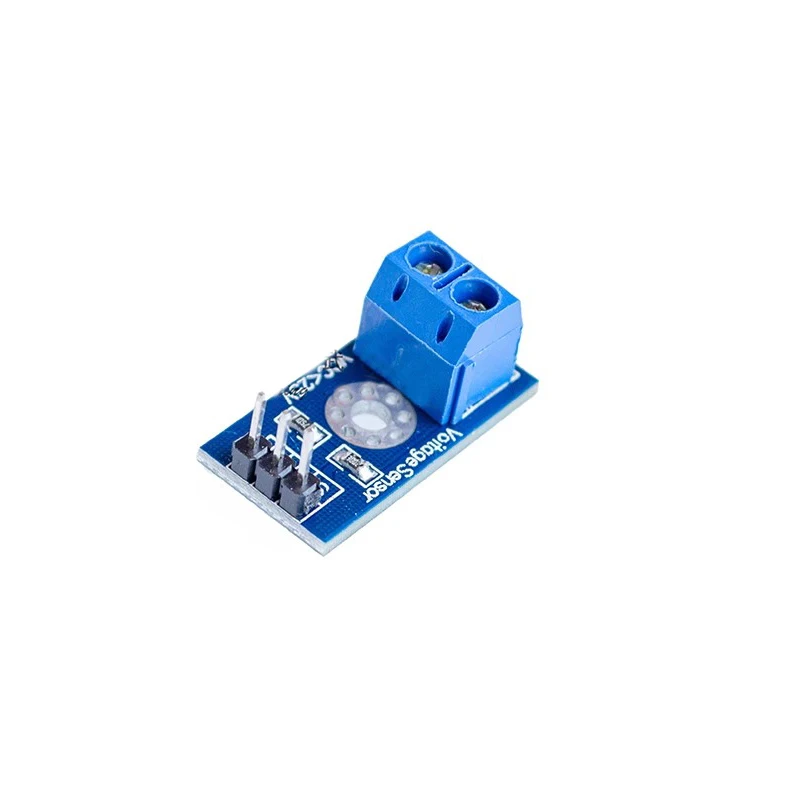

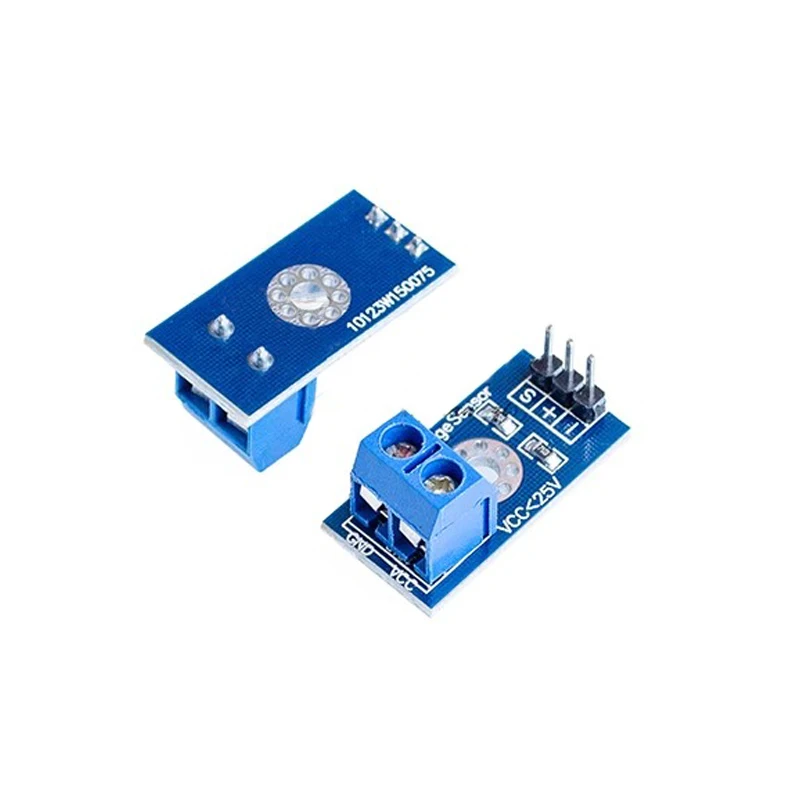

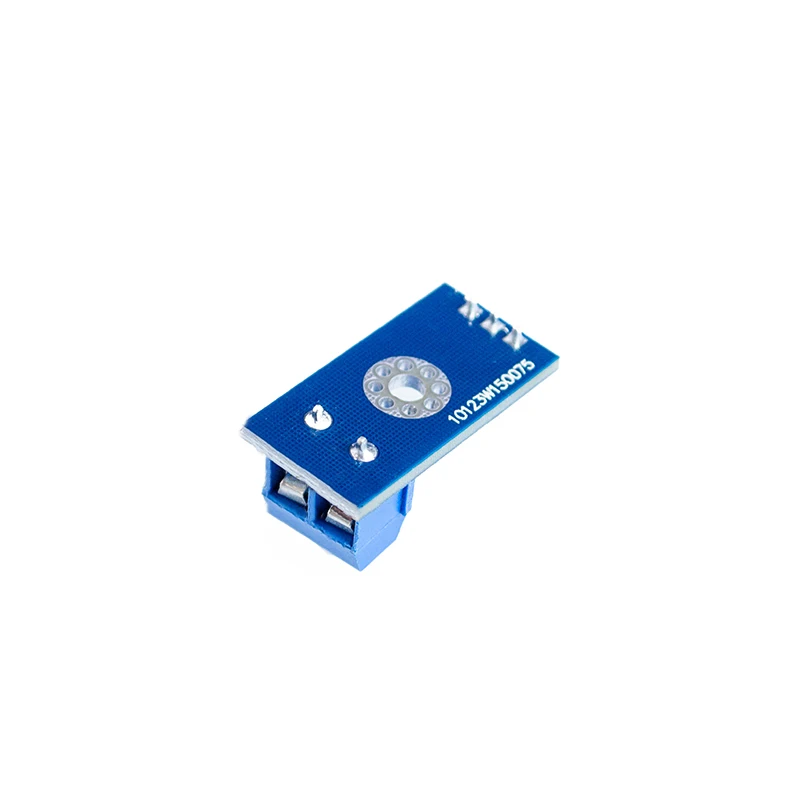

5pcs/lot Smart Electronics DC 0-25V Standard Voltage Sensor Module Test Electronic Bricks Smart Robot for arduino Diy Kit

6 €

incl. 19% VAT plus Shipping Costs

10 products sold in last 10 hours
Selling fast! Over 14 people have in their cart
959 in stock
26 people are viewing this right now
Compare
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

SPECIFICATIONS


Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: …

Functions: Electronic Module

High-concerned chemical: None

Operating Temperature: -40℃~+80℃

Origin: Mainland China

Package: DIY Module

Range of application: Switch And Sensor For Arduino STM

Supply Voltage: DC0-25V

Type: Module

semi_Choice: yes


High Voltage Compatibility: With a DC 0-25V input range, this module is perfect for a variety of electronic projects, ensuring broad compatibility.,Precision Voltage Detection: The module offers a high analog resolution of 0.00489V, providing accurate voltage detection for precise measurements.,Easy Integration: Designed for Arduino DIY kits, this module simplifies integration with a straightforward connection to AD pin.,Compact DIY Module: The compact DIY module design allows for easy setup and modification, ideal for hobbyists and professionals alike.,Robust Operating Temperature: Operates efficiently within a wide temperature range of -40℃~+80℃, making it suitable for various environments.

Module introduction:
This module is designed based on the principle of resistance voltage division, which can reduce the input voltage of the terminal interface by 5 times. The Arduin analog input voltage is 5V, so the input voltage of the voltage detection module should not be greater than 5V×5=25V (if the 3.3V system is used, the input voltage should not be greater than 3.3Vx5=16.5V). Because the AVR chip used by Arduino is 10-bit AD, the analog resolution of this module is 0.00489V (5V/1023), so the voltage detection module detects the input low voltage of 0.00489V×5=0.02445V.
Parameters:
Voltage input range: DC0-25V
Voltage detection range: DC0.02445V-25V
Voltage analog resolution: 0.00489V

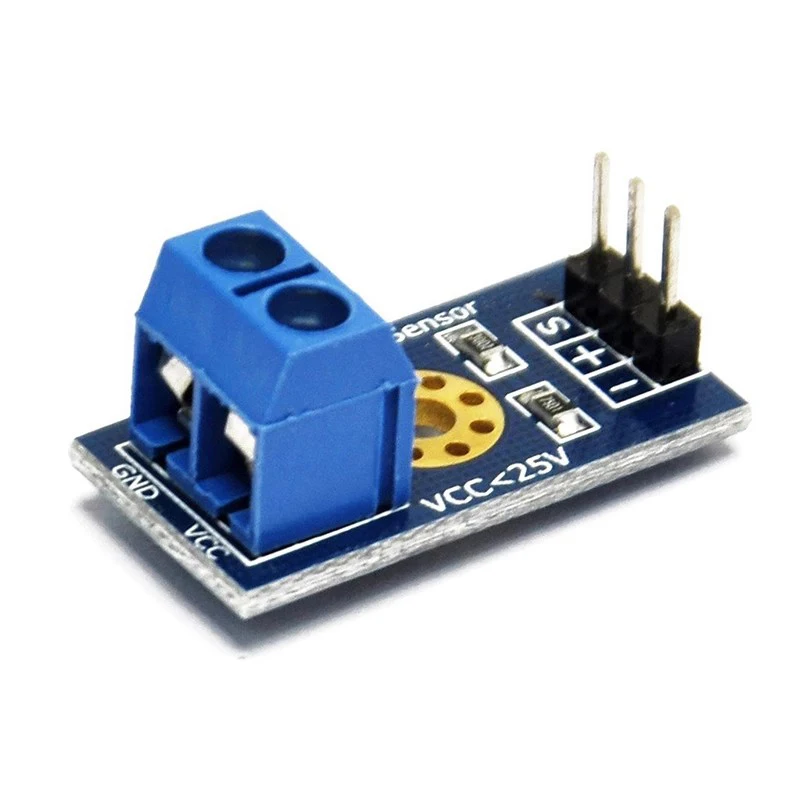

DC input interface: positive terminal is connected to VCC, negative terminal is connected to GND
Output interface: “+” connects to 5/3.3V, “-” connects to GND, “s” connects to AD pin of Arduin

Reference code:
#include

int val11;
int val2;

void setup()
{
pinMode(LED1,OUTPUT);
Serial.begin(9600);
Serial.println(“Emartee.Com”);
Serial.println(“Voltage: “);
Serial.print(“V”);
}
void loop()
{
float temp;
val11=analogRead(1);
Temp = val11/4.092;
val11=(int)temp; //
val2=((val11%100)/10);
Serial.println(val2);
delay(1000);
}
